I-Swim3 Fixed Pool Lift
The Innovative Pool Lift & Adaptable to Your Needs
The unique moveable arms system provides multiple configurations and great flexibility. I-swim3 is the smart solution for a wide range of pool decks, wellness and rehabilitations centers.
I-swim3 is available in 2 different sizes:
STANDARD with 180kg lifting capacity
MAXI – with extended arms and 250kg capacity, able to be equipped with a fix seat, moveable seat or with a stretcher.
I-Swim3 complies the following regulations:
- Directive 2006/42/CE
- Directive 2004/108/EC
- UNI EN ISO 10535
- 93/42/CEE
- Machine Directive
- EMC Electromagnetic compatibility
- Hoist for the transfer of disable persons
- Medical device directives

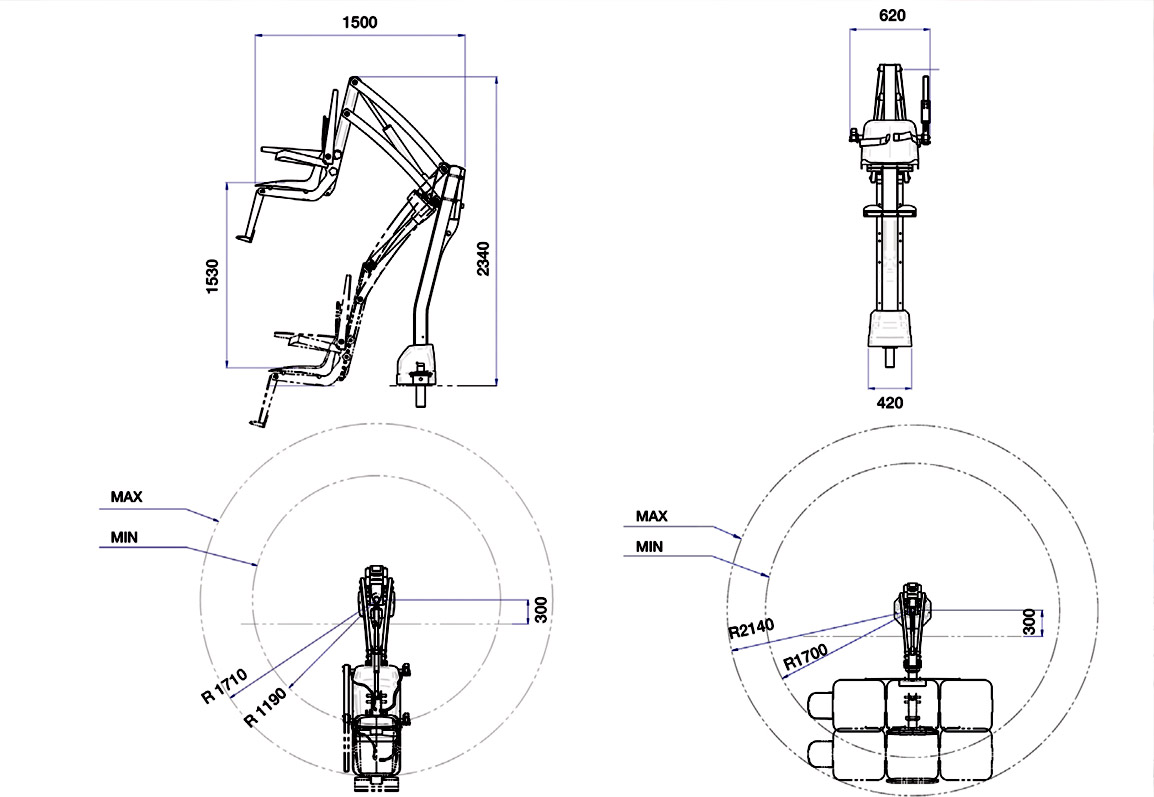

I-Swim3 Dimensions

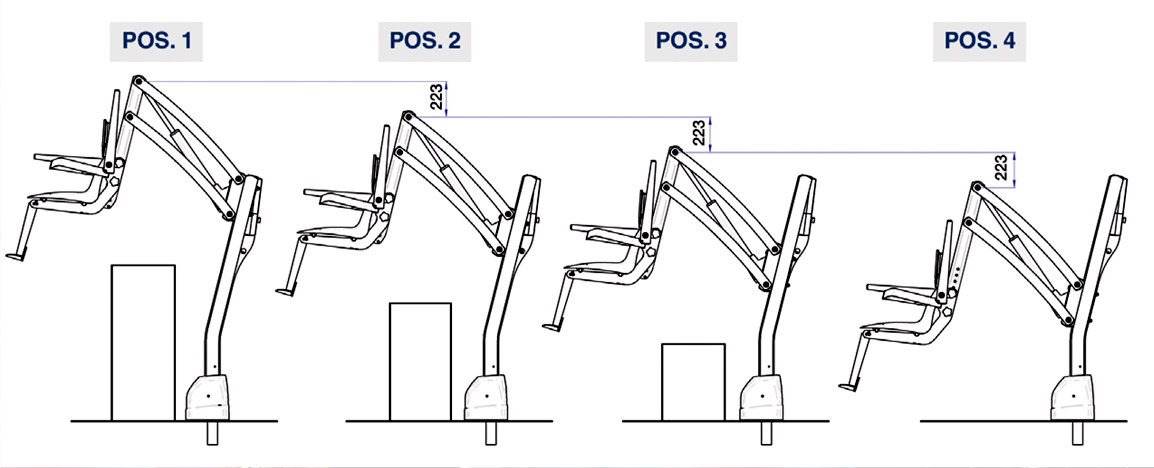

I-Swim3 Configurations
The arms can be set in 4 different position to configure the device for different pool decks.
I-swim3 Comparision
| Model | Description | Lifting Capacity | Max Travel |
|---|---|---|---|
| W80220002-01 | I-Swim3 Standard | 180kg | 1530mm |
| W80220002-02 | ISwim3 MAXI | 250kg | 1530mm |

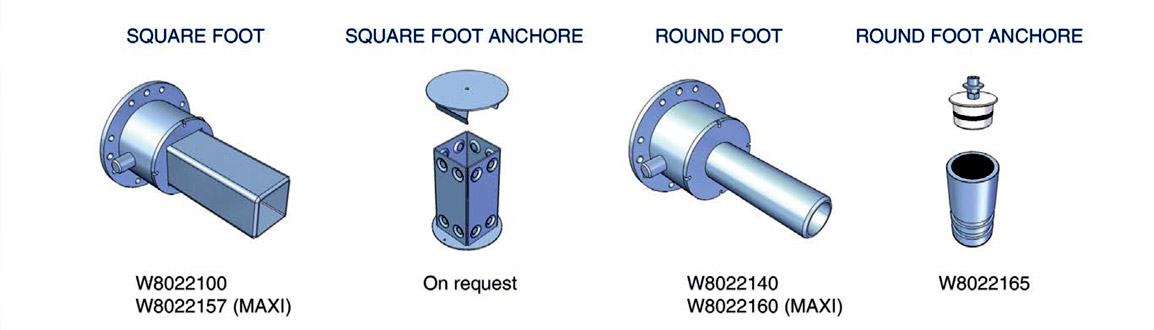

Lift Fixation
The lift fixation kit has to be ordered seperately and customers can choose between a square foot or a round foot.

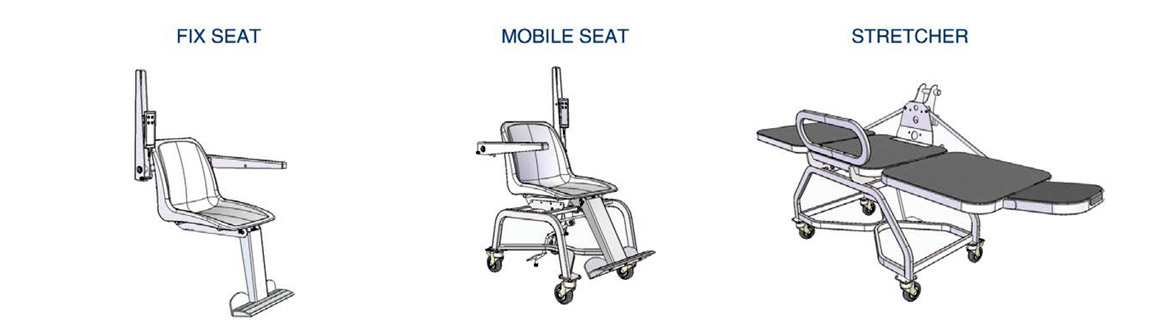

Water Access
In addition to the chosen lift model the customer can order seperately a different seat model or the stretcher. Thereby the same lift can be quickly configured for different needs.
| Technical Features | |
|---|---|
| Structure of Materials | Aluminum / Stainless Steel |
| Rotation | 360 degrees |
| Coating | Powder coating |
| Lifting capacity | 180kg STANDARD / 250kg MAXI |
| Tension | 24V |
| Battery charger | Included |
| battery working range | 50 cycles approx |
| Battery duration | 50 cycles |
| Controls | 4 Button pendant switch |
| Emergency Stop | |
| Battery load indicator |
